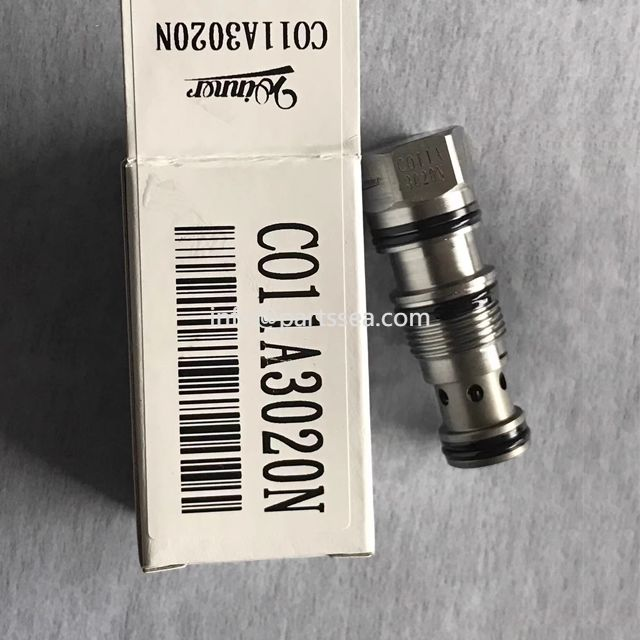

1. Definition and structure of hydraulic threaded cartridge valve
Hydraulic threaded cartridge valve, referred to as plug valve, is a control element used in hydraulic systems. Its working principle is to control the flow direction and flow size of hydraulic oil by adjusting the position of the valve core in the valve body, thereby realizing the control of the hydraulic system.
The main structure of the hydraulic threaded cartridge valve includes valve body, valve core, spring, O-ring and other components. Among them, the valve core is the core component of the plug valve. The working state of the hydraulic system is changed by moving the valve core position, and the O-ring plays a sealing role to ensure the normal operation of the hydraulic system.
2. Application field of hydraulic threaded cartridge valve
Hydraulic threaded cartridge valve is widely used in various hydraulic systems, such as machinery manufacturing, shipbuilding, metallurgy, petroleum and other fields. Its advantages are compact structure, high reliability, easy installation, and flexible and fast control characteristics.
3. Production process of hydraulic threaded cartridge valve
(1). Material selection
The selection of plug valve materials is mainly limited by operating conditions and working environment, and high-quality copper, zinc, aluminum, steel and other materials are usually used. When selecting materials, it is necessary to ensure that they have high strength, good corrosion resistance and pressure resistance.
(2). Appearance processing
The appearance processing of the intubation valve mainly includes processes such as turning, milling, drilling, and grinding. The raw materials are made into the required appearance shape and size through mechanical processing technology, laying the foundation for the next step of internal molding.
(3). Internal molding
The internal molding of the intubation valve mainly includes low-pressure injection molding, high-pressure injection molding, cold extrusion and other processes. The quality of internal molding is related to the service life and working reliability of the intubation valve, so it is very critical.
(4). Assembly and debugging
The assembly of the intubation valve mainly includes steps such as valve core assembly, sealing ring installation and debugging. During the assembly process, it is necessary to strictly follow the process flow to ensure that each component meets the technical requirements.
