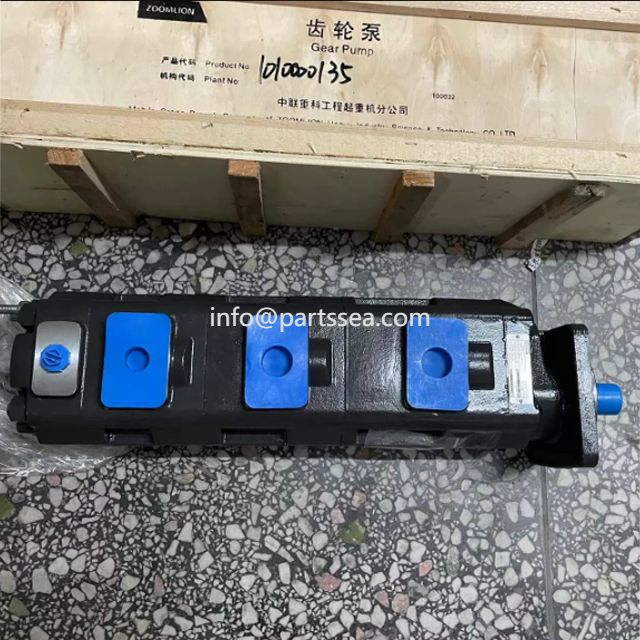

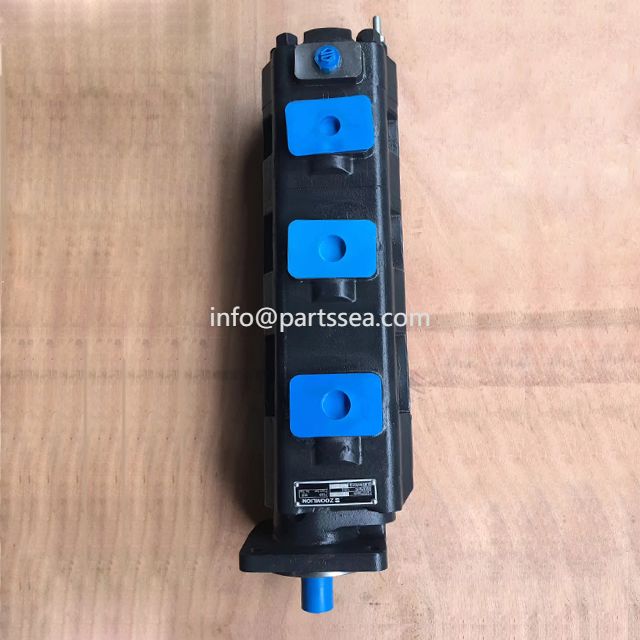

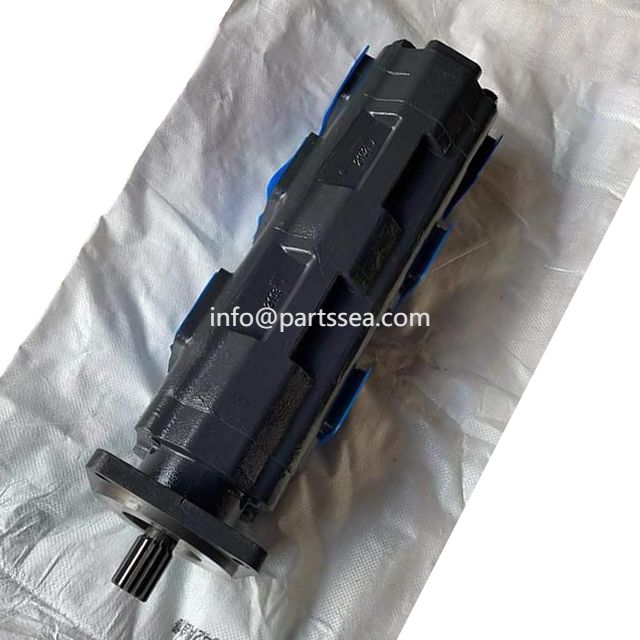

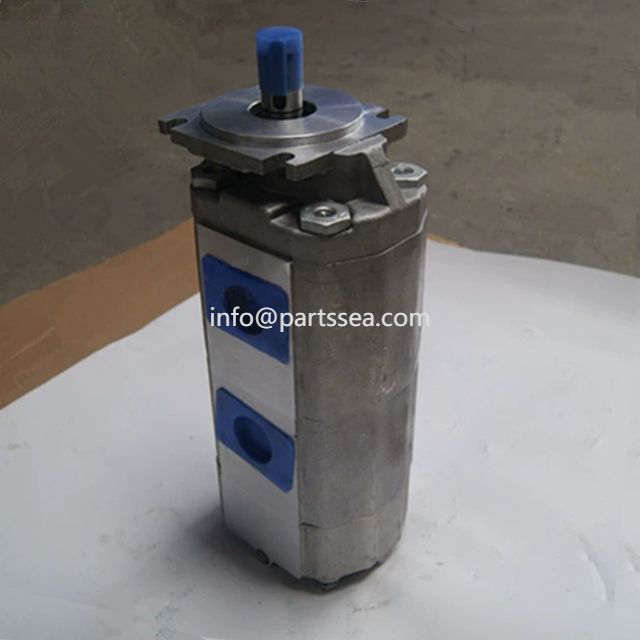

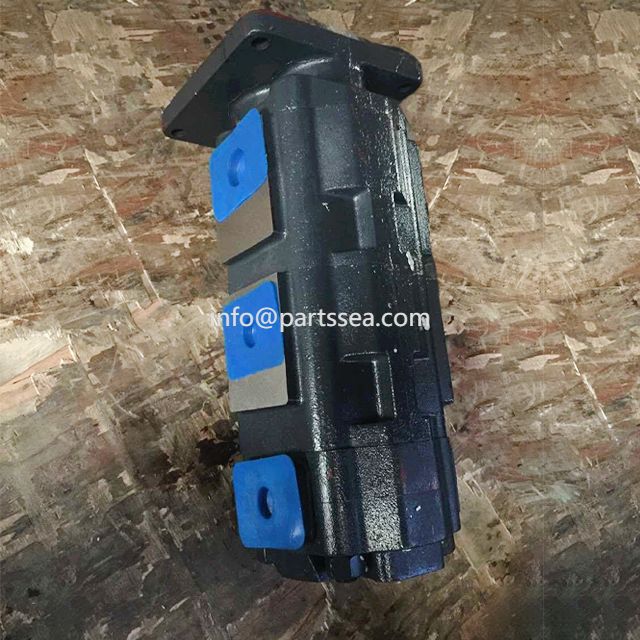

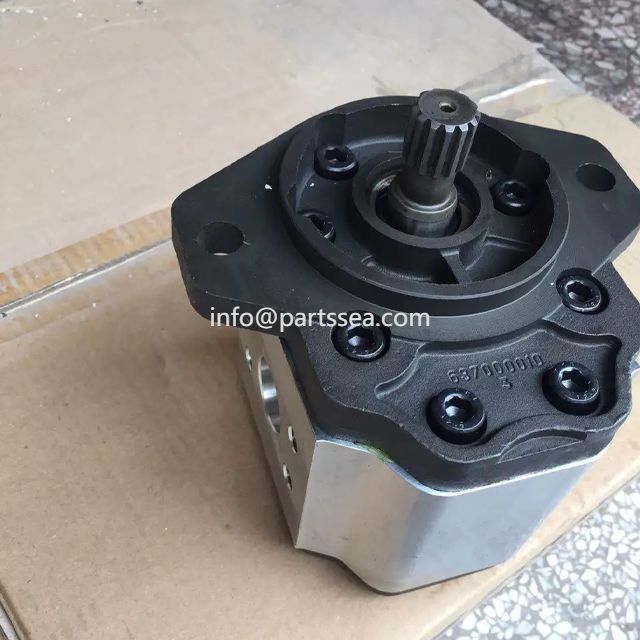

Zoomlion hydraulic Quadruple Triple Double Single gear pump

Please feel free to contactus Parts Sea engineers or sales for help if you have no parts No.

tse@partssea.com  |  sales@partssea.com

Gear pump is a common hydraulic pump, which consists of several important components:.

1.Pump body:

Function: The pump body is the outer shell of the gear pump, which plays the role of fixing and supporting other parts.

2. Gear:

Function: The gear is the core component of the gear pump. The pressure and flow of the fluid are generated through the meshing and rotation of the gear.

3. Pump shaft:

Function: The pump shaft is an important part that connects the gear and the driving device, and transmits driving force and rotation force to the gear.

4. Bearings:

Function: The bearing supports and maintains the normal operation of the rotating parts of the gear pump, reducing friction and wear.

5. Shaft seal:

Function: The shaft seal is used to seal the contact surface between the pump shaft and the pump body to prevent liquid leakage and external impurities from entering the pump body.

6.Import port:

Function: The inlet is the channel through which liquid enters the gear pump, guiding the liquid to the gear to form pressure.

7. Export port:

Function: The outlet port is the channel that directs the fluid generated by the gear pump pressure to the internal system or equipment.

8.Hydraulic oil tank:

Function: The hydraulic oil tank is a container that stores hydraulic oil and provides the required liquid supply to the hydraulic system.
